DESCRIPTION
VERSATILE FOR SOPHISTICATED SYSTEMS AND LAMINAR MIXTURE OUTPUT

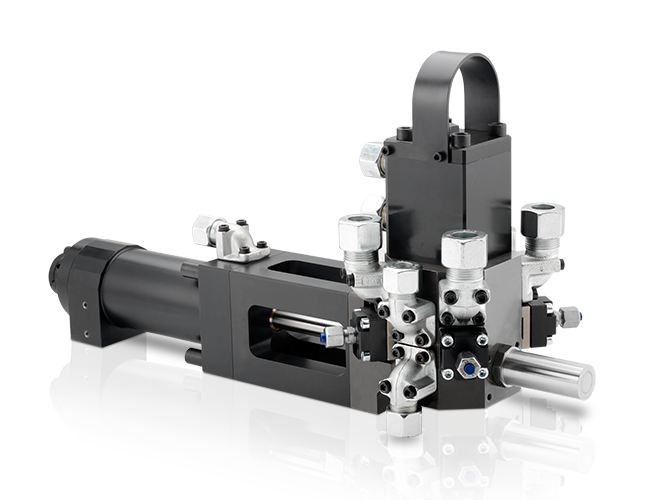

The high quality of the uniform mixing is mainly the result of the special angle of injection into the mixing chamber. Downstream of the mixing chamber, the output tube is positioned at an angle of 90° and reduces turbulence in the reaction mixture as it flows out. Components are recirculated at high pressure before each shot, in a tried-and-tested recirculation groove system. Transfer mixing heads are available for 2 to 6 components.
CORE FEATURES
• Mixing the raw material components in a high-pressure, counterflow injection process
• Self-cleaning mixing head
• Cartridge system simplifies changing nozzle elements
• Optional cleaning piston positioning during the shot
• Design available with Vario nozzles as an alternative to the spring-loaded nozzles
Description
DESCRIPTION
VERSATILE FOR SOPHISTICATED SYSTEMS AND LAMINAR MIXTURE OUTPUT
The high quality of the uniform mixing is mainly the result of the special angle of injection into the mixing chamber. Downstream of the mixing chamber, the output tube is positioned at an angle of 90° and reduces turbulence in the reaction mixture as it flows out. Components are recirculated at high pressure before each shot, in a tried-and-tested recirculation groove system. Transfer mixing heads are available for 2 to 6 components.
Features
CORE FEATURES
• Mixing the raw material components in a high-pressure, counterflow injection process
• Self-cleaning mixing head
• Cartridge system simplifies changing nozzle elements
• Optional cleaning piston positioning during the shot
• Design available with Vario nozzles as an alternative to the spring-loaded nozzles
